| 브랜드 이름: | Casun |
| 모델 번호: | P35SHD4113-21SH |
| MOQ: | 1PC |
| 가격: | $4~$4.6 |
| 지불 조건: | D/A, T/T, L/C, D/P |
| 공급 능력: | 40000+PCS+Month |

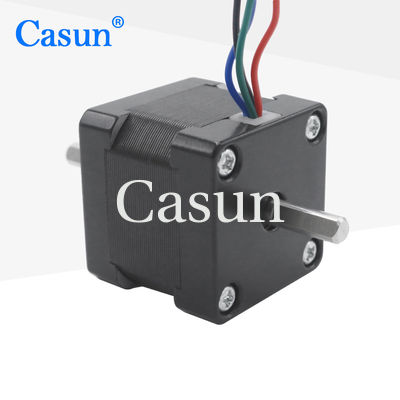

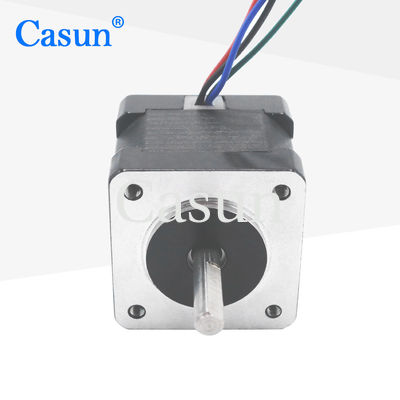

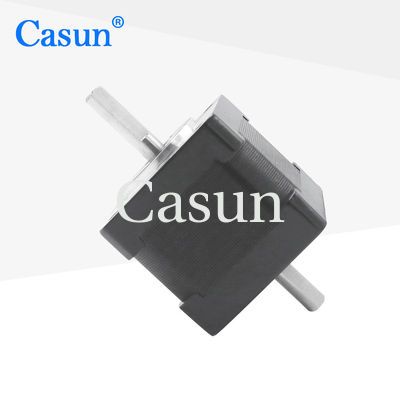

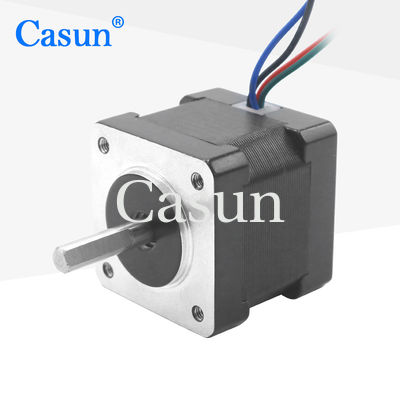

Casun Nema 14 Hollow Shaft Stepper Motor High Precision 2.7 V DC 1.0 AMP for CNC Machine
The Casun Nema 14 Hollow Shaft Stepper Motor delivers high precision performance with 2.7V DC and 1.0A operation, designed for CNC machines. Its hollow shaft design enables easy cable routing while maintaining accurate motion control and reliability for demanding automation applications.
Features:
|
Step Angel
|
1.8° |
|
Frame Size
|
34 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
1 Amp |
|
Holding Torque
|
140 mN.m |
|
Resistance
|
2.7 ohm |
|
Inductance
|
4.3 mH |
|
Rotor Inertia
|
14 g.cm² |
|
Motor weight
|
0.2 kg |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Encoder
Voltage: 5 v
Output: A + A - B + B - Z + Z -
| Model | Holding Torque | Step Angle | Length | Type of Shaft | Rated Current |
|
35SHD0307
|
80 mN.m
|
1.8° |
20 mm
|
D Shaft-20mm
|
0.4A
|
|
35SHD0001
|
100 mN.m
|
1.8° |
26 mm
|
D Shaft-20mm |
0.4A
|
|
35SHD0102
|
150 mN.m |
1.8° |
34 mm
|
D Shaft-20mm |
0.75A
|
|
35SHD0801
|
230 mN.m
|
1.8° |
40 mm
|
D Shaft-20mm |
0.5A
|
