| 브랜드 이름: | Casun |
| 모델 번호: | 57SHD4934-20NMRV030 |
| MOQ: | 1pc |
| 가격: | $34-$28 |
| 지불 조건: | l/c, d/a, d/p, t/t |
| 공급 능력: | 40000+PCS+Month |

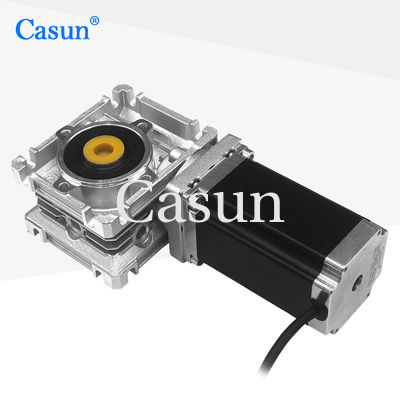

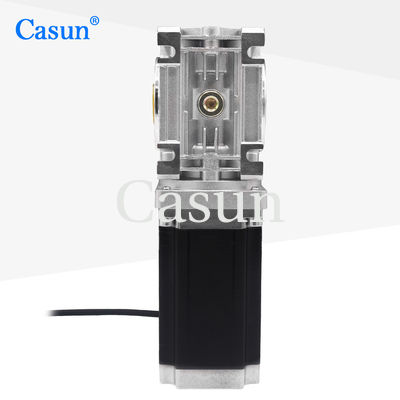

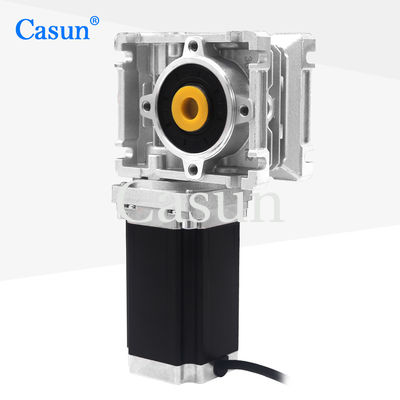

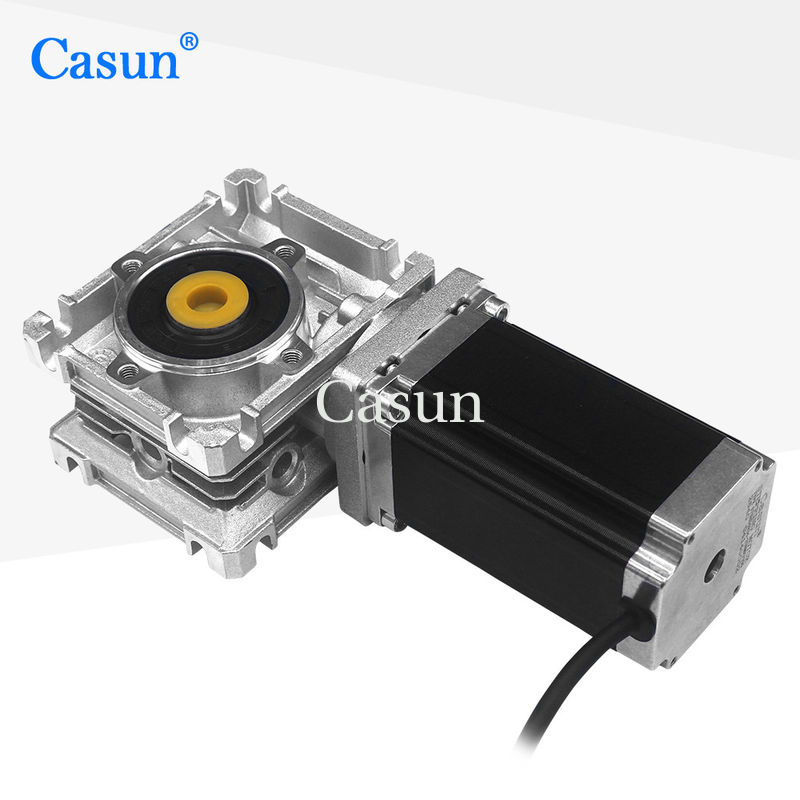

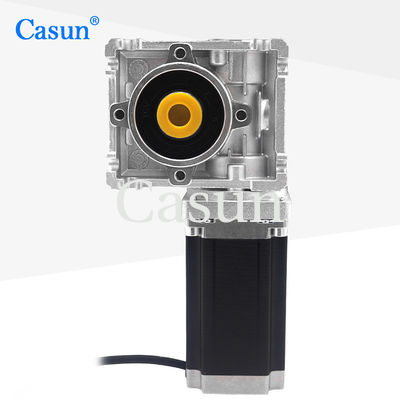

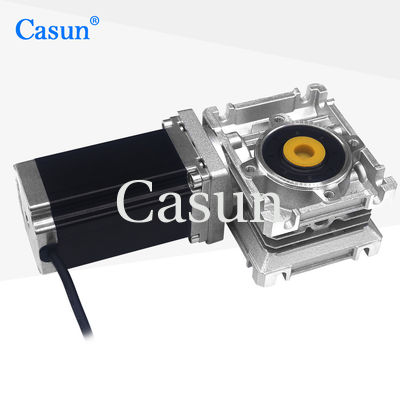

High Quality Casun NEMA 23 Geared Stepper Motors For Printing Machinery With CE ISO ROHS
Geared Stepper Motor NEMA 23 3.0N 1KG Gearbox Stepping Motor for Medical Equipment, Printing Machinery
The 56mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
57mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
3.0 Amp |
|
Holding Torque
|
3.0 N.m |
|
Resistance
|
2.8 om |
|
Inductance
|
11mH |
|
Rotor Inertia
|
650g-cm² |
|
Motor weight
|
1.4kg |
|
Gear Reduction Ratio
|
20:1 |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Gear Box
Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°
| Motor Length | Length of Gearbox | Raio | Efficiency | ||
| 34 mm 40 mm 48 mm 60 mm |
27.2 mm | 3.71 | 90% | ||
| 5.18 | |||||
| 35 mm | 13.76 | 80% | |||
| 19.2 | |||||
| 26.8 | |||||
| 42.7 mm | 51 | 70% | |||
| 71 | |||||
| 99.5 | |||||
| 139 | |||||
