> 상품 > 하이브리드 스테퍼 모터 > NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS

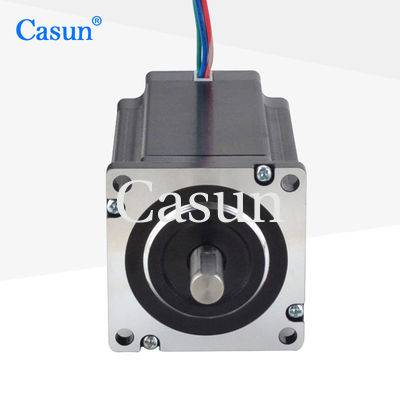

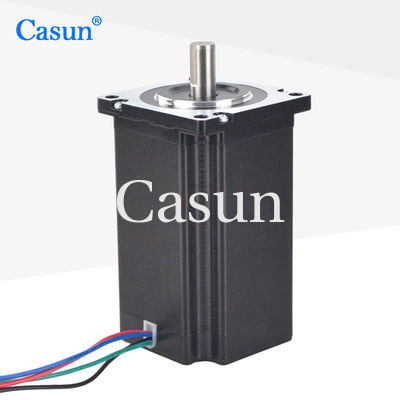

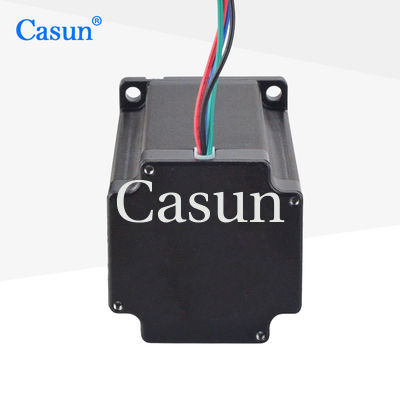

NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS

제품 상세정보

Place of Origin: CHINA

브랜드 이름: Casun

인증: CE,ROHS,ISO

Model Number: 60SHD4703-21B

지불과 운송 용어

Minimum Order Quantity: 1PC

가격: $12.00-$16

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

최상의 가격을 얻으세요
제품 상세정보
강조하다:
color:
black
Current / phase:
4.0A
Holding torque:
3.5N.m
Step Angle:
1.8°
Customized:
The motor can be designed &manufactured with customized request.
color:
black
Current / phase:
4.0A
Holding torque:
3.5N.m
Step Angle:
1.8°
Customized:
The motor can be designed &manufactured with customized request.
제품 설명

NEMA 23 stepper motors have high reliability and lifespan due to their simple structure, no brushes, and no wear and tear.

Being able to provide high twisting torque at low speeds is crucial for applications that require precise control and stable luck.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Distributors are sought after

  • Our engineering team will contact you within two business days to present the optimal solution

  • Customizations on request

Dimensions

NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



60 mm

Number of Phase



2 Phase

Rated Current



4.0 Amp

Holding Torque



3.5N.m

Resistance



0.73ohm

Inductance



2.8mH

Rotor Inertia



1000g-cm²

Motor weight



1.5kg















Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min















Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download





We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS 1 NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS 2 NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS 3 NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A with CE RoHS 4





Please click the "Get  a quote" button below to tell us your requirements.
